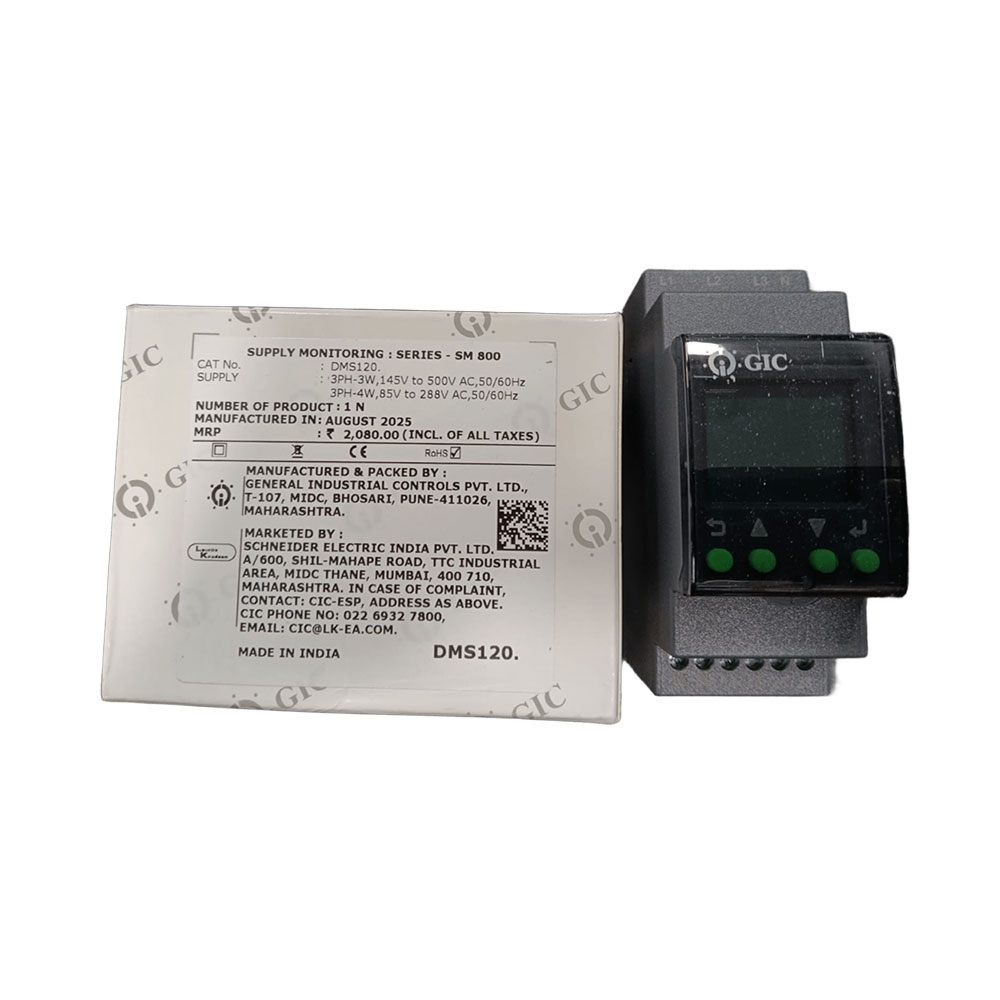

Name: GIC DMS120 - Digital Phase Sequence & Failure Relay, 145-500VAC, 2 C/O outputs
Brand: GIC
Price: 2080 INR
Availability: InStock

GIC DMS120 - Digital Phase Sequence & Failure Relay, 145-500VAC, 2 C/O outputs

Out of stock

Supply Voltage	145 - 500 VAC
Frequency	45 to 65 Hz
Power Consumption (Max.)	5 VA
Phase Loss	Configurable (Enable/Disable) (Default : Enable)
Phase Reverse	Configurable (Enable/Disable) (Default : Enable)
Phase Asymmetry	2 to 50%
Under Voltage	Phase voltage : 90 to 288 VAC, Line voltage : 155 to 500 VAC
Under Voltage Hysteresis	3 to 20VAC +/- 2V (7V Default)
Over Voltage	Phase voltage : 90 to 288 VAC, Line voltage : 155 to 500 VAC
Over Voltage Hysteresis	3 to 20VAC +/- 2V (7V Default)
Under Frequency	45 to 65 Hz
Over Frequency	45 to 65 Hz
Frequency Hysteresis	0.1 to 5 Hz
Asymmetry	Voltage : 5 to 99 VAC (Default 60V), Percentage : 2 to 50%
Hysteresis for Asymmetry	Voltage : 3 to 99 VAC +/- 2V (Default 7V), Percentage : 2 to 15%
ON Delay	2sec to 999sec (Default : 5sec)
Trip Time (OFF Delay)	0.1 to 999sec (Phase loss & Phase reverse : <100ms), Default : Neutral Loss is <500ms & UV, OV, Asymmetry fault 5sec
Relay Output	1 C/O + 1 C/O
Contact Rating	5A (Resistive) @ 240 VAC / 30 VDC
Electrical Life	1X10^ 5 Operations
Mechanical Life	1X10^7 Operations
Utilization Category AC-15	120/240 V, 3/1.5 A
Utilization Category DC-13	24/125/250 V, 2/0.22/0.1 A
Operating Temperature	-10°C to + 60°C
Storage Temperature	-20°C to + 70°C
Humidity (Non Condensing)	95% (Rh)
Enclosure	Flame Retardant UL 94-V0
Dimension (W x H x D) (in mm)	36 x 90 x 67
Weight	100 g
Mounting	Base / DIN
Degree of Protection	IP-20 for Enclosure & Terminals, IP-40 with Front Facia for Dust cover
